1. Install the glass - front door partition.

2. Install the running channel - front door and the sash assembly - partition.

CAUTION:

Check that the running channel - front door is securely fixed to the panel assembly - front door and to the sash assembly - partition.

Tightening torque:

Refer to “COMPONENT” of “General Description”. General Description > COMPONENT

NOTE:

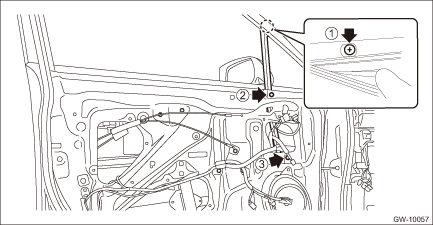

Tighten the sash assembly - partition in the following order.

3. Install the glass assembly - front door.

Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

4. Install the front door inner pad.

5. Install the sealing cover - front door.

6. Install the trim panel - front door. Door Trim > INSTALLATION

7. Connect the ground terminal to battery sensor. NOTE
