1. RH SIDE

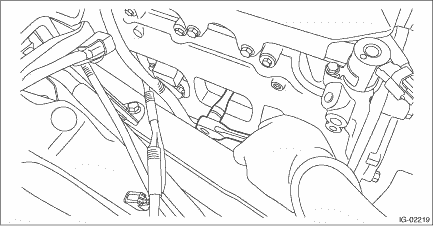

1. Install the spark plugs using a spark plug socket.

Tightening torque:

21 N·m (2.1 kgf-m, 15.5 ft-lb)

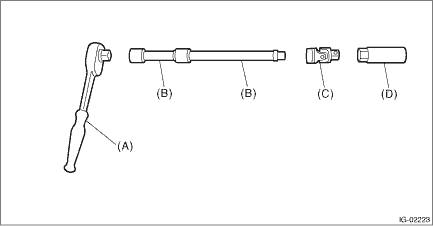

(A)	Ratchet handle	(B)	Extension bar	(C)	Universal joint
(D)	Spark plug socket

2. Install the ignition coil.

NOTE:

Turn the #5 ignition coil to install it.

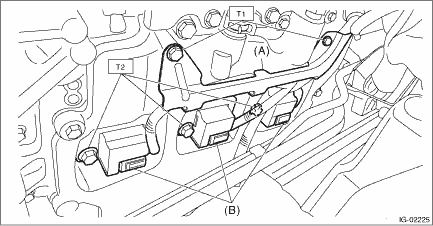

3. Connect the connector (B) to the ignition coil.

4. Install the engine harness stay (A).

Tightening torque:

T1: 6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

T2: 16 N·m (1.6 kgf-m, 11.8 ft-lb)

5. Install the air cleaner case. Air Cleaner Case > INSTALLATION

6. Connect the ground terminal to battery sensor. NOTE

7. Install the collector cover.

2. LH SIDE

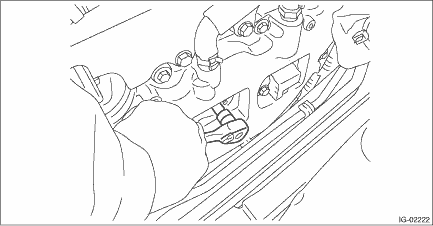

1. Install the spark plugs using a spark plug socket.

Tightening torque:

21 N·m (2.1 kgf-m, 15.5 ft-lb)

(A)	Ratchet handle	(B)	Extension bar	(C)	Universal joint
(D)	Spark plug socket

2. Install the ignition coil.

NOTE:

Turn the #6 ignition coil to install it.

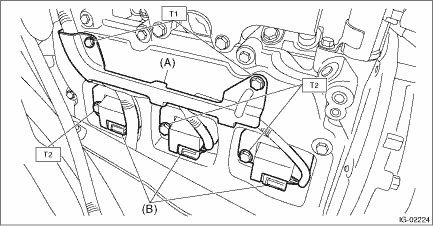

3. Connect the connector (B) to the ignition coil.

4. Install the engine harness stay (A).

Tightening torque:

T1: 6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

T2: 16 N·m (1.6 kgf-m, 11.8 ft-lb)

5. Install the battery. Battery > INSTALLATION

6. Install the collector cover.

Inspection

1. Check the spark plug for abnormalities. If defective, replace the spark plug.(A)Terminal damage(B)Crack or damage in insulator(C)Damaged gasket2. Check the spark plug electrode and condition of the ...
