1. GLASS LID

1. Install the lid assembly - sunroof.

Tightening torque:

4.5 N·m (0.5 kgf-m, 3.3 ft-lb)

2. Perform the open/close operation checks for the glass lid.

3. Check the height of the lid assembly - sunroof and the roof panel, and perform adjustment when there is a difference between up and down, and left and right. Glass Lid > ADJUSTMENT

4. Install the lid cover.

2. DEFLECTOR ASSEMBLY

1. Install the deflector assembly - sunroof.

CAUTION:

When the hook is removed, be careful of the hook direction.

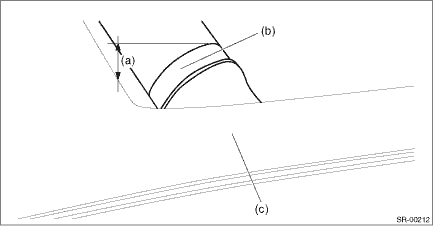

2. After installation, measure the height from the roof panel when deflector assembly - sunroof is activated.

(a)

14 mm (0.55 in)

(b)

Deflector ASSY - sunroof

(c)

Roof panel
