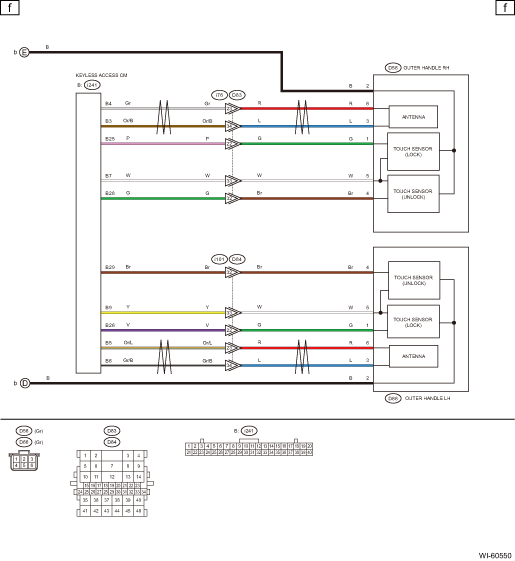

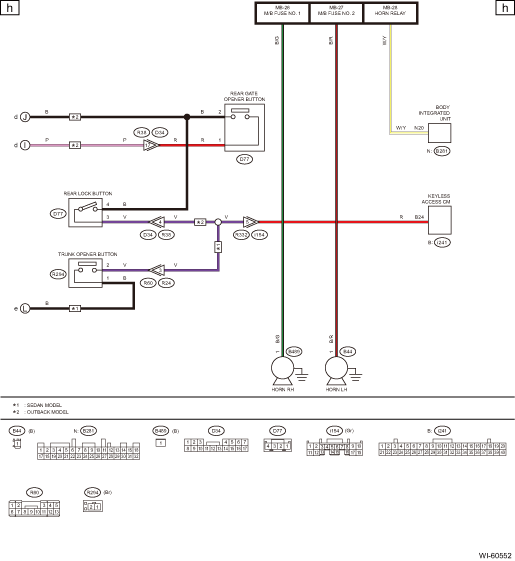

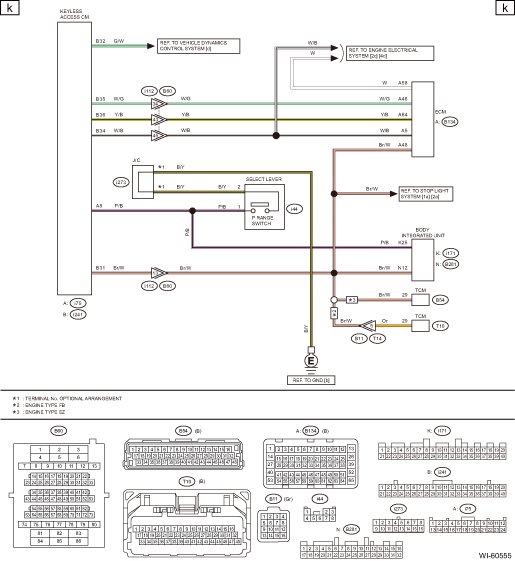

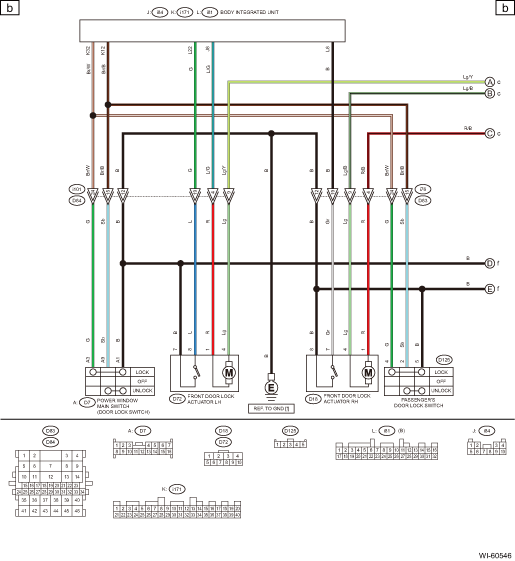

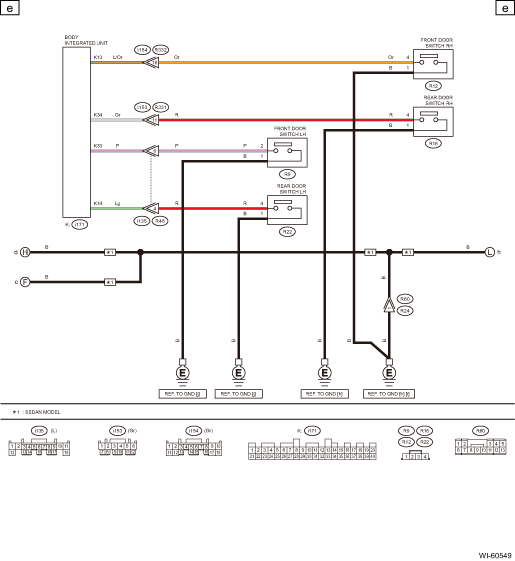

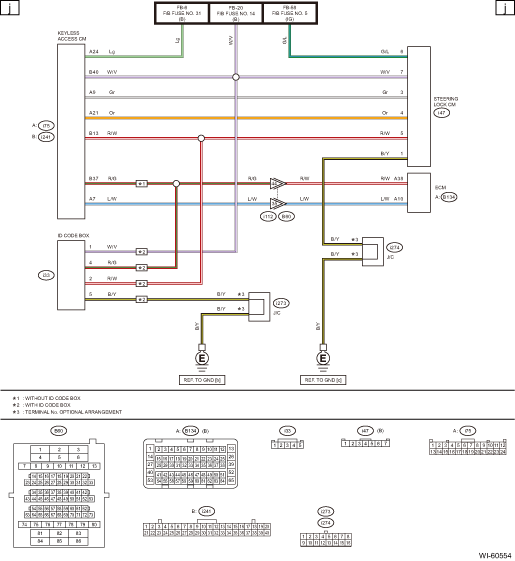

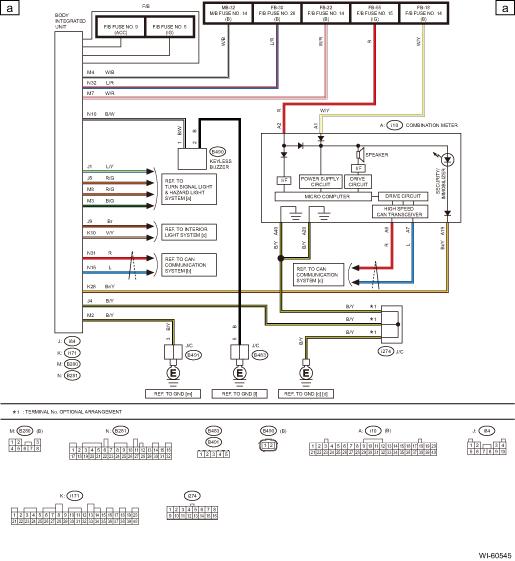

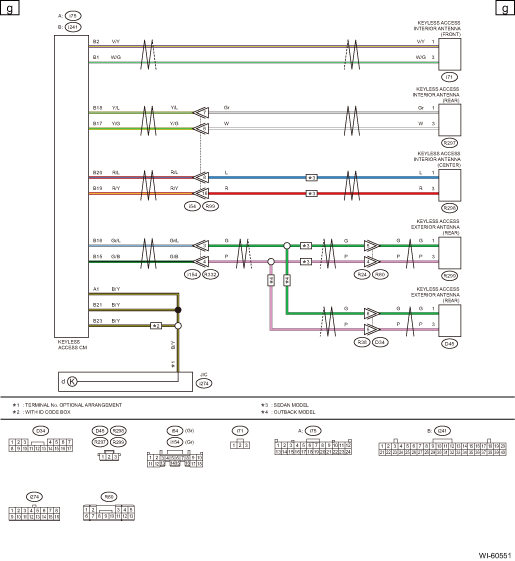

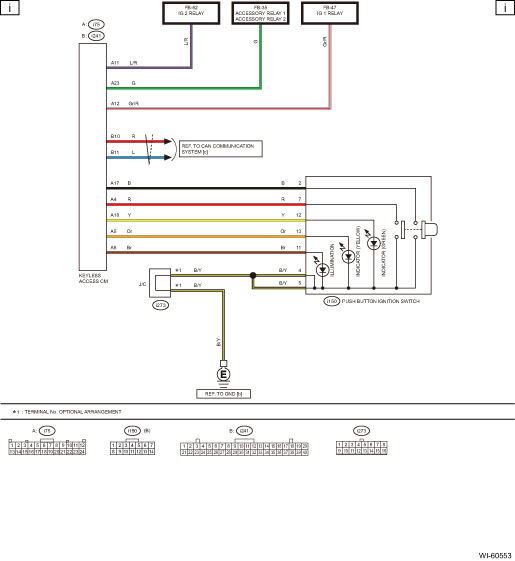

Subaru Legacy BN/BS (2015-2019) Service Manual: Keyless access with push button start system wiring diagram

Interior light system wiring diagram

Keyless entry system wiring diagram

Other materials:

Dtc b2788 ign signal correlation (steering lock cm)
DTC DETECTING CONDITION:When mismatch occurs in the IG1 input of the steering lock CM for both LIN communication line input (IG1 input value of keyless access CM) and solid line input.TROUBLE SYMPTOM:The steering lock cannot be released.CAUTION:For replacement procedure of keyless access CM and stee ...
