Legacy

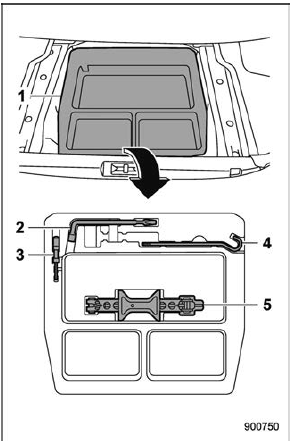

1) Under-floor storage compartment (Refer to "Under-floor storage compartment" .)
2) Wheel nut wrench
3) Screwdriver
4) Jack handle
5) Jack

The maintenance tools are stored in the under-floor storage compartment.

For the method to use the jack, refer to "Flat tires" .
