Subaru Legacy BN/BS (2015-2019) Service Manual: Location

Subaru Legacy BN/BS (2015-2019) Service Manual / Control systems / At shift lock control system / Location

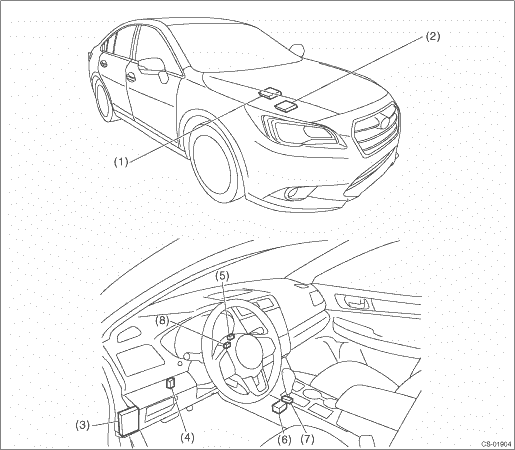

1. MODEL WITHOUT PUSH BUTTON IGNITION SWITCH

(1)	TCM (engine type: EZ)	(4)	Stop light switch	(7)	“P” range switch
(2)	TCM (engine type: FB)	(5)	Key cylinder (with built-in key warning switch)	(8)	Key lock solenoid
(3)	Body integrated unit	(6)	Solenoid unit

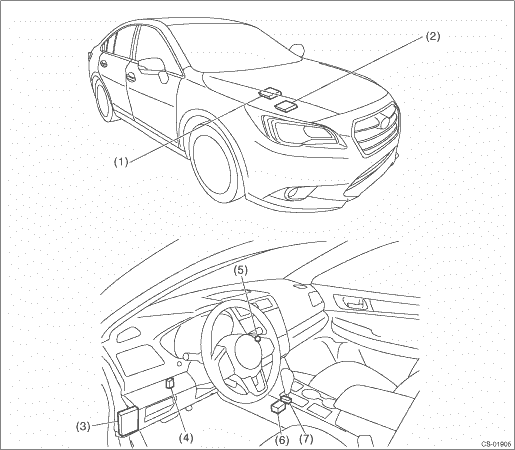

2. MODEL WITH PUSH BUTTON IGNITION SWITCH

(1)	TCM (engine type: EZ)	(4)	Stop light switch	(6)	Solenoid unit
(2)	TCM (engine type: FB)	(5)	Push button ignition switch	(7)	“P” range switch
(3)	Body integrated unit

Electrical specification

ItemConnector No.Terminal No.Input/Output signalMeasured value and measuring conditionsBattery power supplyB28049 — 16 V7B28132TCM (“P” range)i1712Pulse signal (CAN communication)22Stop ...

At shift lock solenoid and “p” range switch

...
