Subaru Legacy BN/BS (2015-2019) Service Manual: Location

Subaru Legacy BN/BS (2015-2019) Service Manual / Lighting system / Relay and fuse / Location

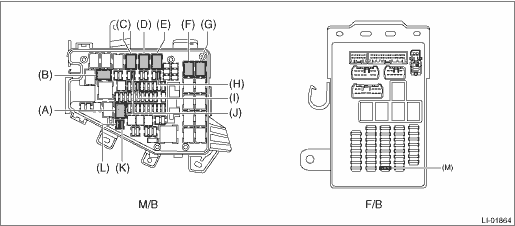

Main fuse box (M/B)

Front fog light relay

(A)

Headlight relay HI (RH)

(B)

Tail and illumination relay

(C)

Headlight relay LO

(D)

Headlight relay HI (LH)

(E)

Daytime running light relay (RH)

(F)

Daytime running light relay (LH)

(G)

Fuse 10 A (headlight HI (LH))

(H)

Fuse 10 A (headlight HI (RH))

(I)

Fuse 10 A (license light (LH/RH), rear combination light (LH/RH))

(J)

Fuse 10 A (front fog light (LH), SRF CM)

(K)

Fuse 10 A (front fog light (RH), SRF CM)

(L)

Fuse & relay box (F/B)

Fuse 7.5 A (stop light and brake switch)

(M)

NOTE:

For other related fuses, refer to the wiring diagram. Power Supply Circuit
