CAUTION:

• Immediately after the vehicle has been running or after idling for a long time, the CVTF will be hot. Be careful not to burn yourself.

• If the CVTF is spilt over exhaust pipe, wipe it off with cloth to avoid emitting smoke or causing a fire.

• When removing the CVTF cooler pipe assembly on vehicle side, be careful not to bend the A/C pipe.

1. Lift up the vehicle.

2. Remove the under cover - front.

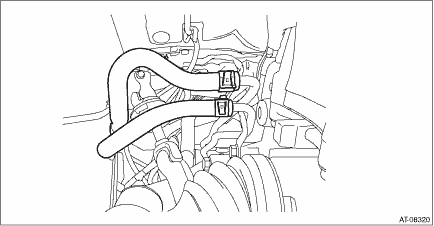

3. Remove the CVTF CVT inlet hose and CVTF CVT outlet hose.

4. Lower the vehicle.

5. Remove the battery and battery box. Battery > REMOVAL

6. Remove the front bumper. Front Bumper > REMOVAL

7. Remove the headlight assembly LH. Headlight Assembly > REMOVAL

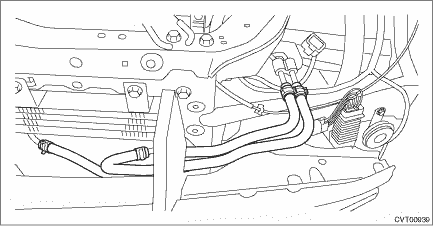

8. Remove the CVTF cooler (air cool) inlet hose and the CVTF cooler (air cool) outlet hose.

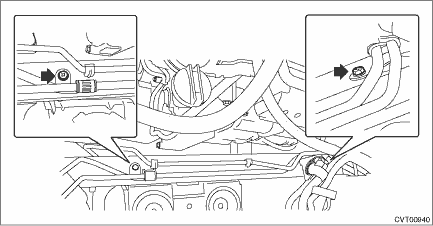

9. Remove the CVTF cooler pipe assembly mounting bolt.

10. Detach the A/C pipe from clip.

11. Remove the CVTF cooler pipe assembly.

12. Remove the clip (A), and loosen the clamps (B) and (C).

13. Remove the air intake boot assembly, and move it to the left side wheel apron.

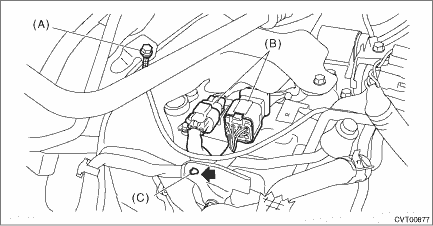

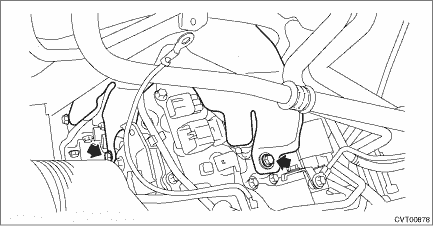

14. Disconnect the transmission radio ground terminal and transmission harness connector, and remove the harness clip.

(A)	Transmission radio ground terminal
(B)	Transmission harness connectors
(C)	Harness clip

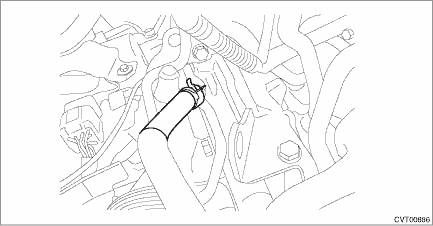

15. Remove the CVTF cooler hose.

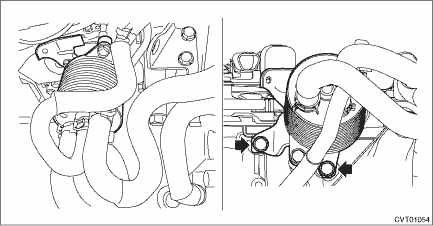

16. Remove the CVTF cooler (with warmer feature), and fix it on the vehicle with a string.

17. Remove the transmission case cover.

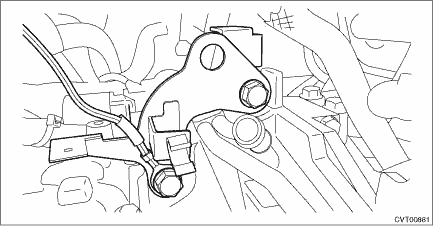

18. Remove the air breather hose from the transmission hanger, and remove the transmission hanger and the transmission radio ground cord.

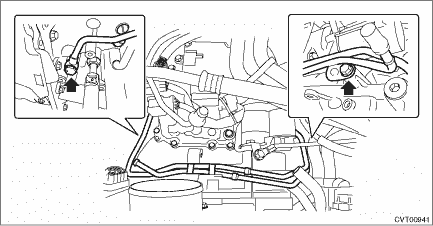

19. Remove the CVTF cooler pipe COMPL from the transmission body.

Inspection

Repair or replace any faulty hoses, pipes, clamps, and washers found in the inspection below.• Check for CVTF leaks in joints at the transmission, CVTF cooler (air cool), pipes, and hoses.• ...
