CAUTION:

• Directly after the vehicle has been running or the engine has been idling for a long time, the CVTF is hot. Be careful not to burn yourself.

• Be careful not to spill CVTF on the exhaust pipe to prevent it from emitting smoke or causing a fire. If the CVTF adheres, wipe it off completely.

1. Lift up the vehicle.

2. Remove the under cover - front.

3. Clean the transmission exterior.

4. Remove the CVTF drain plug to drain CVTF.

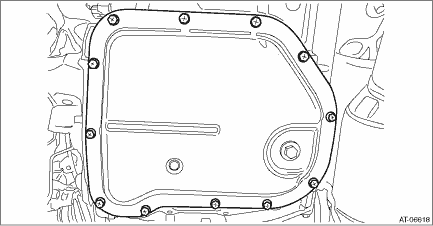

5. Remove the oil pan.

CAUTION:

Be careful not to allow foreign matter such as dust or dirt to enter the oil pan.

6. Remove the magnet.

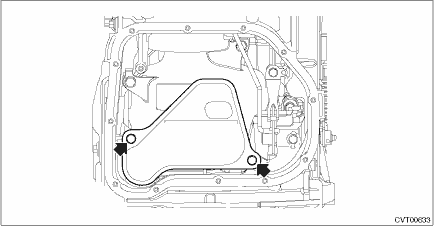

7. Remove the oil strainer.

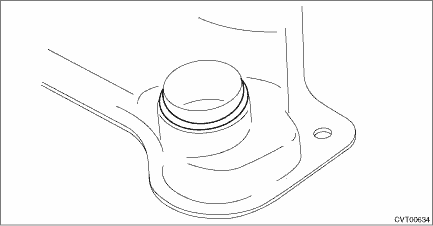

8. Remove the O-ring from oil strainer.

Inspection

• Check each part for damage or dust.• Check oil strainer for clogging. ...
