Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr580) / Reduction driven gear / Removal

1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL

2. Remove the extension case. Extension Case > REMOVAL

3. Remove the transfer clutch assembly. Transfer Clutch > REMOVAL

4. Remove the transfer driven gear assembly. Transfer Driven Gear > REMOVAL

5. Remove the parking pawl. Parking Pawl > REMOVAL

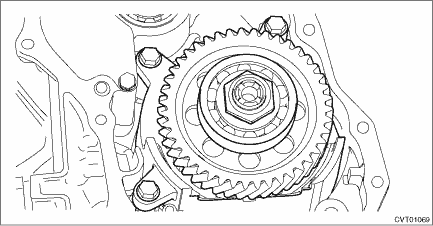

6. Remove the reduction driven gear assembly and spacer oil.

Adjustment

1. Measure the height “A” from the ST upper face to the ball bearing catch surface.ST 499575600GAUGE2. Measure the height “B” from the ST to the mating surface of the transm ...
