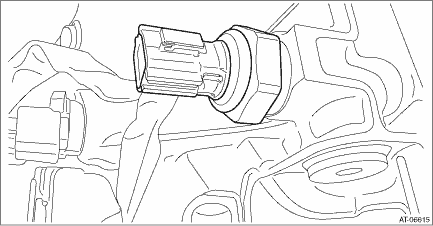

CAUTION: • Be sure to prevent water or oil from contacting the connector terminal of secondary pressure sensor. If adhesion occurs, replace with a new part. • When secondary pressure sensor is removed, CVTF leaks. After installing the secondary pressure sensor, adjust the CVTF level. 1. Disconnect the ground terminal from battery sensor. NOTE 2. Lift up the vehicle. 3. Remove the secondary pressure sensor connector. 4. Remove the secondary pressure sensor. |
Adjustment
1. Remove the spring retainers and reduction drive gear shims.2. Install the transmission case, and secure it with four or five bolts.Tightening torque:22 N·m (2.2 kgf-m, 16.2 ft-lb)3. Measure depth “A” from the ST upper face to the reduction drive gear end face.ST 499575400GAU ...
