Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Cvtf cooler (air cooling) / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the front bumper. Front Bumper > REMOVAL

3. Remove the headlight assembly LH. Headlight Assembly > REMOVAL

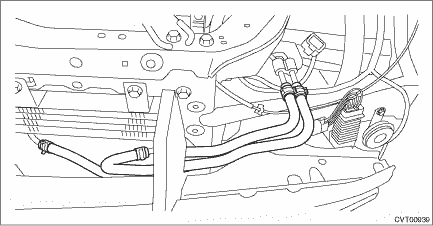

4. Remove the CVTF cooler (air cool) inlet hose and the CVTF cooler (air cool) outlet hose.

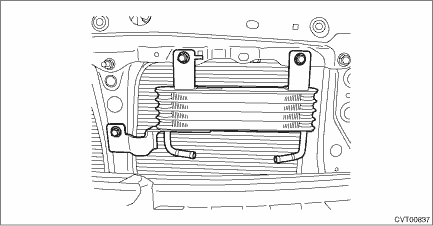

5. Remove the CVTF cooler (air cool).

Inspection

Check that the CVTF cooler (air cool) has no deformation, cracks or other damages. ...
