Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Drive plate / Removal

1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL

2. Set the ST.

NOTE:

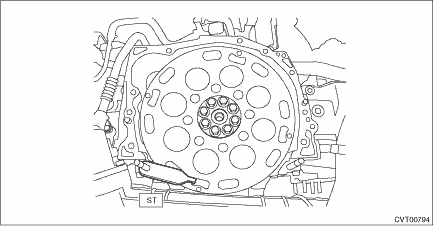

Set the ST to the drive plate referring to the illustration.

ST 498497300

CRANKSHAFT STOPPER

3. Remove the drive plate and reinforcement drive plate.
