Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Transmission case / Removal

1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL

2. Remove the air breather hose. Air Breather Hose > REMOVAL

3. Remove the transmission harness. Transmission Harness > REMOVAL

4. Remove the secondary speed sensor. Secondary Speed Sensor > REMOVAL

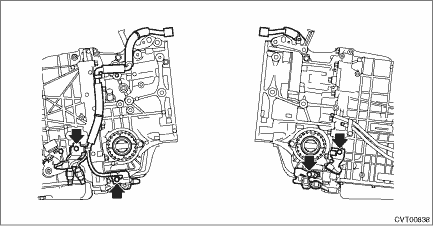

5. Remove the oxygen sensor harness and harness bracket.

6. Remove the inhibitor switch. Inhibitor Switch > REMOVAL

7. Remove the extension case. Extension Case > REMOVAL

8. Remove the rear drive shaft. Rear Drive Shaft > REMOVAL

9. Remove the transfer clutch assembly. Transfer Clutch > REMOVAL

10. Remove the transfer reduction driven gear assembly. Transfer Reduction Driven Gear > REMOVAL

11. Remove the intermediate case. Intermediate Case > REMOVAL

12. Remove the forward clutch assembly. Forward Clutch Assembly > REMOVAL

13. Remove the reduction driven gear. Reduction Driven Gear > REMOVAL

14. Remove the oil pan and control valve body. Control Valve Body > REMOVAL

NOTE:

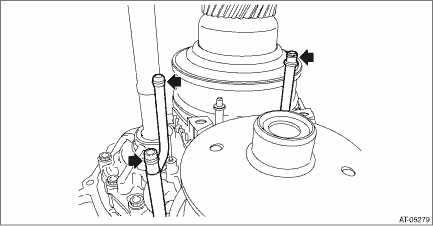

When removing the control valve body, also remove the pressure pipe if it is attached on the case.

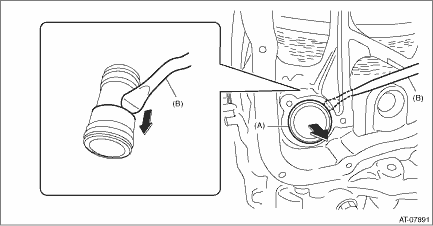

15. Remove the CVTF pipe using a tire lever etc.

NOTE:

Remove by hooking the stepped portion of CVTF pipe with a tire lever etc.

(A)	CVTF pipe
(B)	Tire lever

16. Remove the transmission case.

NOTE:

The total number of transmission case mounting bolts is 15.

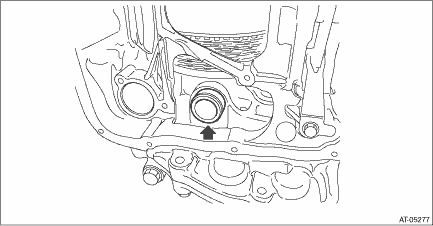

17. Remove the O-ring of lubrication pipe.

18. Remove the control device system. Transmission Control Device > REMOVAL
