Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Cooling(h6do) / Radiator fan and fan motor assembly / Removal

1. Remove the collector cover.

(1) Carefully pull up the rear of collector cover at two positions (A).

(2) Carefully pull up the front of collector cover at two positions (B) while moving it forward.

2. Disconnect the ground terminal from battery sensor. NOTE

3. Remove the air intake duct. Air Intake Duct > REMOVAL

4. Drain approximately 3.0 L (3.2 US qt, 2.6 Imp qt) of coolant. Engine Coolant > REPLACEMENT

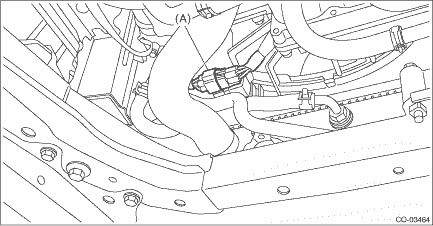

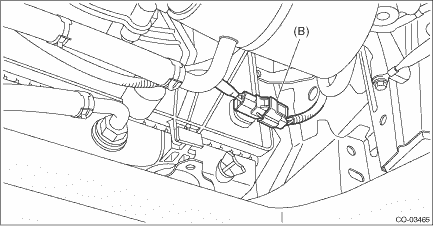

5. Disconnect the connector (A) and connector (B) from the radiator fan harness.

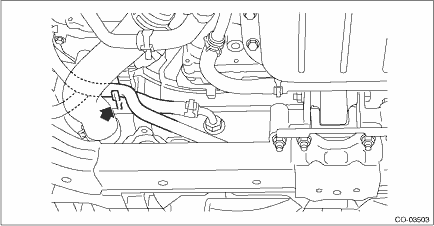

6. Remove the CVTF radiator inlet hose and CVTF radiator outlet hose from the clips of the radiator fan shroud.

7. Lower the vehicle.

8. Remove the reservoir tank. Reservoir Tank > REMOVAL

9. Disconnect the radiator inlet hose LH and radiator inlet hose RH.

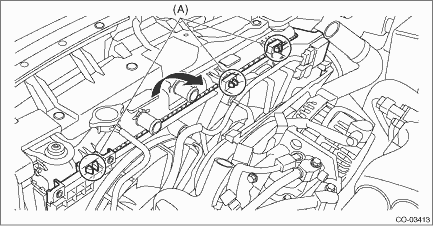

10. Release the claw (A) on the radiator upper side, and incline the top of the radiator fan & fan motor assembly to the engine side.

11. Remove the radiator fan & fan motor assembly from vehicle body.
