1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the center grille assembly. Air Vent Grille > REMOVAL

3. Remove the heater control assembly. Control Panel > REMOVAL

4. Remove the audio assembly.

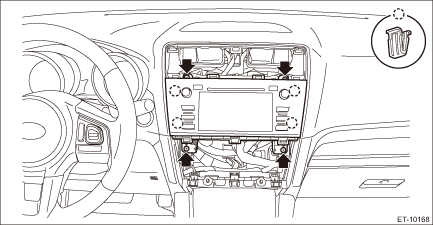

(1) Remove the screws and clips.

(2) Disconnect the connector and remove the audio assembly.

NOTE:

The model with telematics is equipped with the data communication module under the audio assembly.

CAUTION:After installing the center grille assembly, check that the air vent grille of the center grille assembly is inserted correctly into the air vent duct.1. Install the audio assembly.2. Install ...
