1. TWEETER

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel - front pillar UPR. Upper Inner Trim > REMOVAL

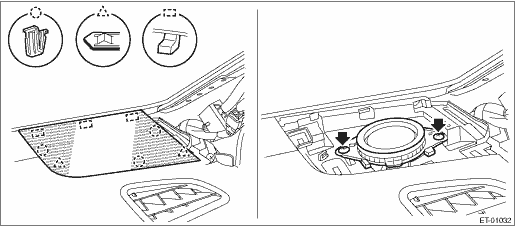

3. Remove the speaker assembly - tweeter.

(1) Release the clips and claws, then detach the grille speaker side.

(2) Remove the screws.

Preparation tool:

Stubby screwdriver

(3) Disconnect the connector and remove the speaker assembly - tweeter.

2. CENTER SPEAKER

1. Disconnect the ground terminal from battery sensor. NOTE

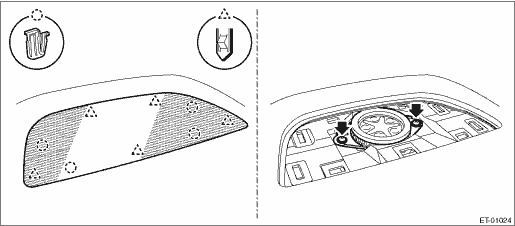

2. Remove the speaker assembly - center.

(1) Release the clips and claws, then detach the grille speaker center.

NOTE:

Remove the grille speaker center by using a plastic remover.

(2) Remove the screws.

Preparation tool:

Stubby screwdriver

(3) Disconnect the connector and remove the speaker assembly - center.

3. DOOR SPEAKER

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the trim panel - front door. Door Trim > REMOVAL

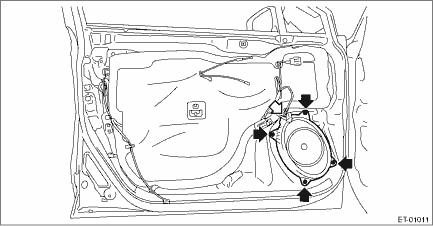

3. Remove the speaker assembly - front door.

(1) Disconnect the connector.

(2) Remove the screws and remove the speaker assembly - front door.

1. TWEETER1. Install the speaker assembly - tweeter.2. Install the grille speaker side.3. Install the trim panel - front pillar UPR. Upper Inner Trim > INSTALLATION4. Connect the ground terminal to b ...
