Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Entertainment / Rear speaker / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel - rear door. Door Trim > REMOVAL

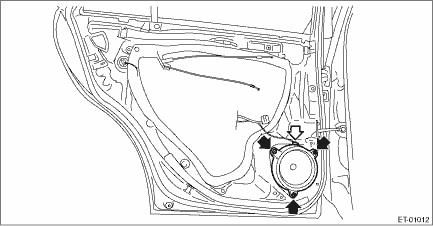

3. Remove the speaker assembly - rear door.

(1) Disconnect the connector.

(2) Remove the screws and remove the speaker assembly - rear door.

Installation

1. Install the speaker assembly - rear door.2. Install the trim panel - rear door. Door Trim > INSTALLATION3. Connect the ground terminal to battery sensor. NOTE ...
