1. SEDAN MODEL

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the trim panel assembly - rear shelf. Rear Shelf Trim > REMOVAL

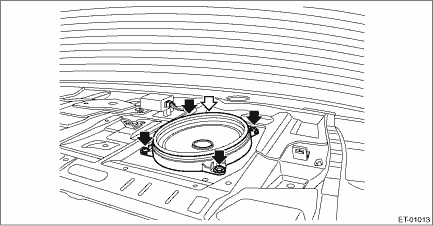

3. Remove the woofer assembly.

(1) Disconnect the connector.

(2) Remove the bolts, then remove the woofer assembly.

2. OUTBACK MODEL

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the trim panel - rear apron RH. Rear Quarter Trim > REMOVAL

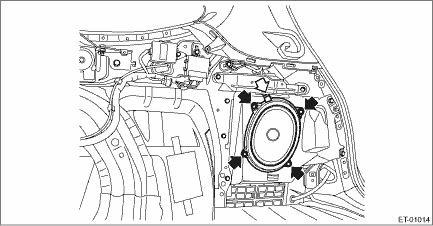

3. Remove the woofer assembly.

(1) Disconnect the connector.

(2) Remove the bolts, then remove the woofer assembly.

Installation

1. SEDAN MODEL1. Install the woofer assembly.Tightening torque:7.5 N·m (0.8 kgf-m, 5.5 ft-lb)2. Install the trim panel assembly - rear shelf. Rear Shelf Trim > INSTALLATION3. Connect the groun ...
