Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Exterior body panels / Door sash tape / Removal

1. FRONT DOOR

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the trim panel - front door. Door Trim > REMOVAL

3. Remove the outer mirror assembly. Outer Mirror Assembly > REMOVAL

4. Remove the sealing cover - front door. Front Sealing Cover > REMOVAL

5. Remove the glass assembly - front door. Front Door Glass > REMOVAL

6. Remove the running channel - front door.

7. Remove the clip, and remove the weather strip - door upper side. Weather Strip > REPLACEMENT

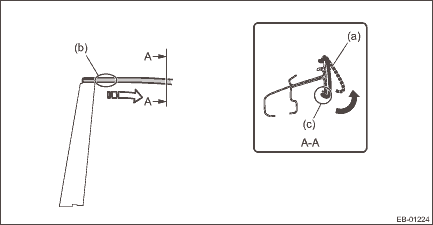

8. Remove the molding - door sash front (a) by disengaging the bottom part (c) from the specified position (b) toward the front side of the vehicle.

CAUTION:

• When removing the molding - door sash, take special care to avoid the distortion.

• When distortion occurred to the molding - door sash, always replace it with a new part.

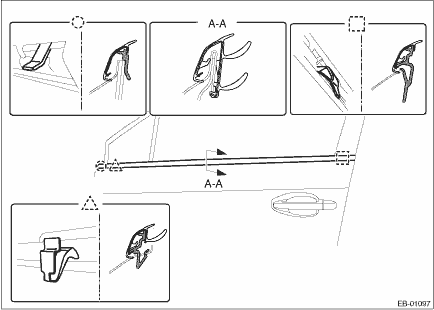

9. Remove the weather strip outer - front door.

CAUTION:

• When removing the weather strip outer, be careful not to damage the vehicle.

• Do not reuse the weather strip outer. Always replace with a new part.

10. Peel the door sash tape from the door sash.

NOTE:

• If the tape is difficult to remove, warm the tape with a hairdryer, etc. to make the removal easier.

Use a household hairdryer. Do not use industrial dryers.

• If tape residue is remaining on the door sash, wipe clean.

2. REAR DOOR

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel - rear door. Door Trim > REMOVAL

3. Remove the sealing cover - rear door. Rear Sealing Cover > REMOVAL

4. Remove the glass assembly - rear door. Rear Door Glass > REMOVAL

5. Remove the running channel - rear door.

6. Remove the clip, and remove the weather strip - door upper side. Weather Strip > REPLACEMENT

7. Remove the molding - door sash rear (a) by disengaging the bottom part (c) from the specified position (b) toward the rear side of the vehicle.

CAUTION:

• When removing the molding - door sash, take special care to avoid the distortion.

• When distortion occurred to the molding - door sash, always replace it with a new part.

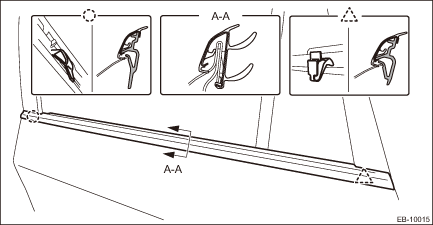

8. Remove the weather strip outer - rear door.

CAUTION:

• When removing the weather strip outer, be careful not to damage the vehicle.

• Do not reuse the weather strip outer. Always replace with a new part.

9. Peel the door sash tape from the door sash.

NOTE:

• If the tape is difficult to remove, warm the tape with a hairdryer, etc. to make the removal easier.

Use a household hairdryer. Do not use industrial dryers.

• If tape residue is remaining on the door sash, wipe clean.

Installation

CAUTION:• Do not reuse the removed door sash tape. Replace it with a new tape.• When applying tape, use a spatula, etc. to apply evenly, pushing it against the sash to make sure that no ai ...
