1. FRONT DOOR

CAUTION:

Refer to “CAUTION” of “General Description” before handling the airbag system components. General Description > CAUTION

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

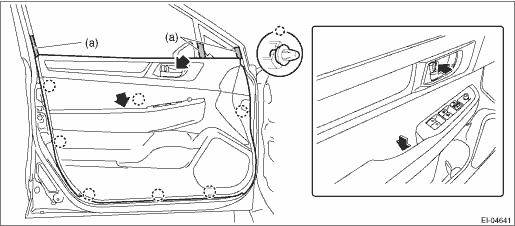

2. Remove the trim panel - front door.

(1) Attach the protective tape (a).

(2) Open the cover and remove the screw.

(3) Remove the clips, and remove the trim panel - front door from the panel assembly - front door.

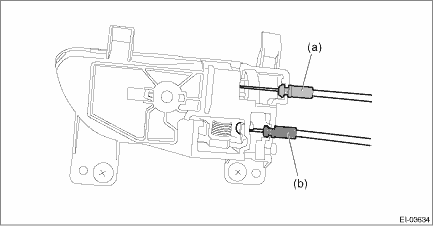

(4) Detach the door lock cable (a) and door open cable (b) from the remote assembly - door.

(5) Disconnect the harness connector and remove the trim panel - front door.

3. Remove each part as required.

• Remote assembly - door: Front Inner Remote > REMOVAL

• Switch - power window main: Power Window Control Switch > REMOVAL

• Weather strip - door INN: Door Trim > DISASSEMBLY

2. REAR DOOR

1. Disconnect the ground terminal from battery sensor. NOTE

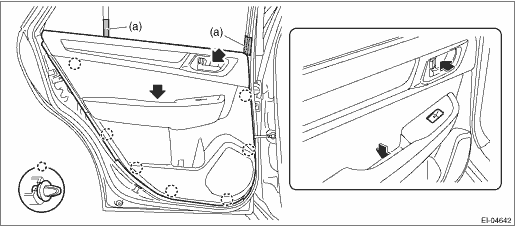

2. Remove the trim panel - rear door.

(1) Attach the protective tape (a).

(2) Open the cover and remove the screw.

(3) Remove the clips, and remove the trim panel - rear door from the panel assembly - rear door.

(4) Detach the door lock cable (a) and door open cable (b) from the remote assembly - door.

(5) Disconnect the harness connector and remove the trim panel - rear door.

3. Remove each part as required.

• Remote assembly - door: Rear Inner Remote > REMOVAL

• Switch - power window sub: Power Window Control Switch > REMOVAL

• Weather strip - door INN: Door Trim > DISASSEMBLY

1. Bend the claws while pushing the weather strip - door INN against the trim panel - door so that there is no gap.CAUTION:Beware of the direction of folding the claws.(a)Rivet(b)Direction of folding ...
