Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

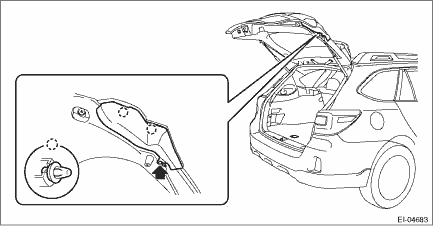

1. Disconnect the ground terminal from battery sensor. NOTE 2. Remove the rear gate trim. Rear Gate Trim > REMOVAL 3. Remove the garnish assembly - rear gate. (1) Remove the bolts and clips, and remove the cover - rear gate RH and LH.

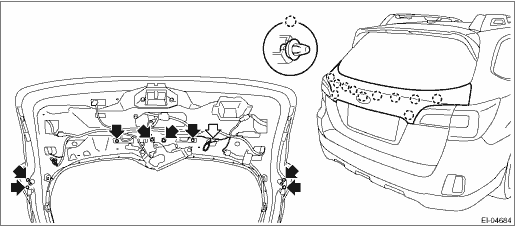

(2) Remove the power rear gate touch sensor LWR. (Model with power rear gate) Power Rear Gate Touch Sensor > REMOVAL (3) Disconnect the request switch harness connector. (4) Remove the nuts. (5) Remove the clips and remove the garnish assembly - rear gate.
|
Assembly
1. Install the garnish LWR.2. Install the switch - opener rear gate. Rear Gate Opener Button > INSTALLATION3. Install the protector UPR. ...
Installation
CAUTION:Make sure that there is a gasket attached on the clip of the garnish assembly. If a gasket is not attached, water leakage may occur.1. Install the garnish assembly - rear gate.Tightening torqu ...
