Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Exterior interior trim / Rear shelf trim / Removal

CAUTION:

• Refer to “CAUTION” of “General Description” before handling the airbag system components. General Description > CAUTION

• If the hook - rear seat is disconnected from the vehicle body, make sure to replace the hook - rear seat with a new part to prevent the decline of the fixed force of the seat.

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the rear seat cushion assembly. Rear Seat > REMOVAL

3. Remove the side pad assembly - backrest and the trim panel - rear pillar UPR on the left and right sides. Rear Quarter Trim > REMOVAL

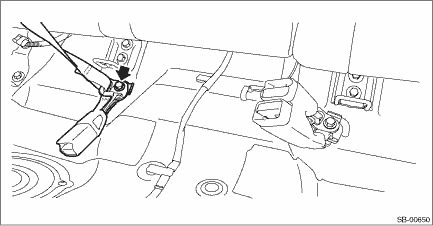

4. Remove the bolts, and remove the lower anchor of the seat belt - rear shoulder CTR.

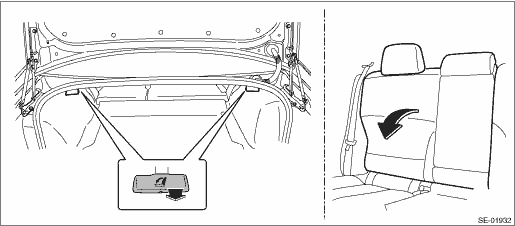

5. Pull the release lever in the trunk room, and then tilt the backrest forward.

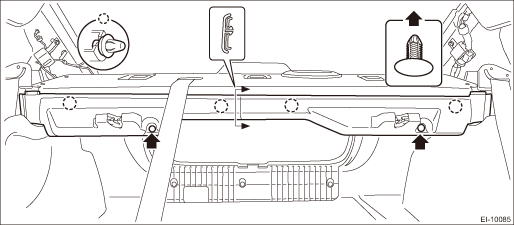

6. Release the clips and remove the trunk trim panel assembly - front on the left and right sides.

7. Remove the trim panel assembly - rear shelf.

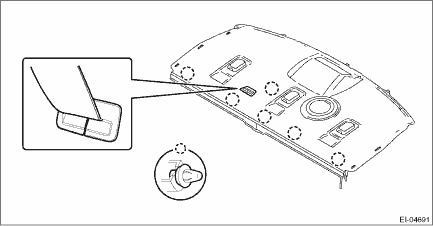

(1) Release the clips to float the trim panel assembly - rear shelf.

(2) Release the belt guide, and guide the anchor of the seat belt - rear shoulder CTR to behind the trim panel - rear shelf assembly.

(3) Disconnect the connector of the light assembly - high-mounted.

(4) Remove the trim panel assembly - rear shelf.
