Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

CAUTION:

If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emission of smoke or causing a fire.

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the air intake duct. (RH side only) Air Intake Duct > REMOVAL

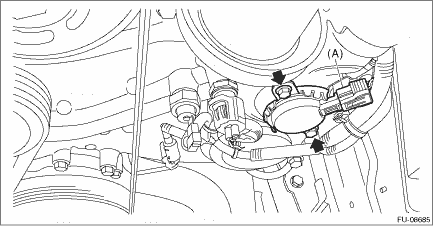

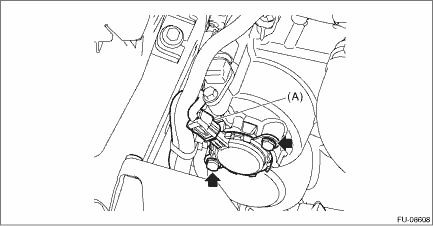

3. Disconnect the connector (A) from the intake oil control solenoid, and remove the intake oil control solenoid from the chain cover.

RH side

LH side

Oil control solenoid
...

Inspection
1. Check that the oil control solenoid has no deformation, cracks or other damages.2. Measure the resistance between the oil control solenoid terminals.Terminal No.Standard1 and 27.25±0.4 - (when 20& ...
