Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

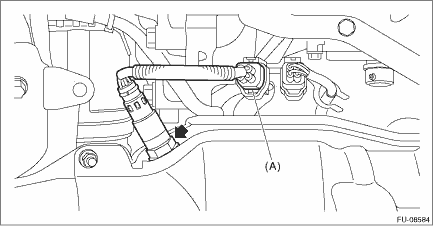

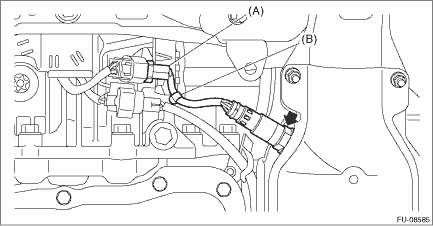

1. Disconnect the ground terminal from battery sensor. NOTE 2. Lift up the vehicle. 3. Disconnect the connector (A) of the front oxygen (A/F) sensor. 4. Remove the clip (B) securing the front oxygen (A/F) sensor harness. (LH side only) 5. Apply spray-type lubricant (004301003) or equivalent to the threaded portion of front oxygen (A/F) sensor, and leave it for one minute or more. 6. Remove the front oxygen (A/F) sensor. CAUTION: When removing the front oxygen (A/F) sensor, wait until exhaust pipe cools, otherwise it will damage the exhaust pipe. • RH side
• LH side
|
Inspection
1. Check that the front oxygen (A/F) sensor has no deformation, cracks or other damages.2. Measure the resistance between front oxygen (A/F) sensor terminals.Terminal No.Standard3 and 42.0+0.42 &minus ...
