Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

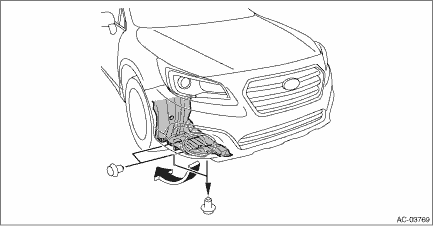

1. Disconnect the ground terminal from battery sensor. NOTE 2. Remove the clips, and turn over the mud guard - front.

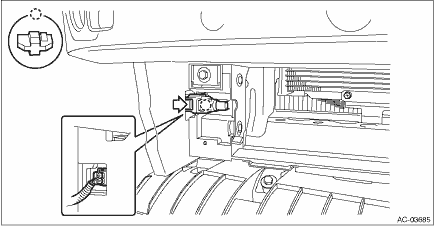

3. Disconnect the connector and remove the ambient sensor.
|
Ambient sensor
...
Inspection
1. Visually check the ambient sensor for dirt or damage, and clean or replace as necessary.2. Measure the resistance between ambient sensor terminals.CAUTION:During inspection, be careful not to touch ...
