Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Hvac system (heater ventilator and a c) / Mode door actuator / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the cover assembly - instrument panel LWR driver. Instrument Panel Lower Cover > REMOVAL

3. Remove the bolts, and then remove the panel - knee guard.

4. Remove the motor - actuator mode.

(1) Disconnect the connector.

(2) Remove the screws, and remove the motor - actuator assembly.

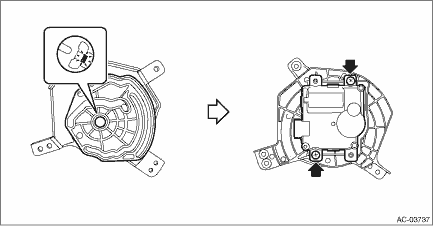

(3) Release the lock and remove the link plate.

(4) Remove the screws and detach the motor - actuator mode.
