Subaru Legacy BN/BS (2015-2019) Service Manual / Hvac system (heater ventilator and a c) / Sunload sensor (auto a c model) / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel - front pillar UPR. Upper Inner Trim > REMOVAL

3. Release the clips and claws, then detach the grille speaker side. Front Speaker > REMOVAL

4. Remove the sunload sensor.

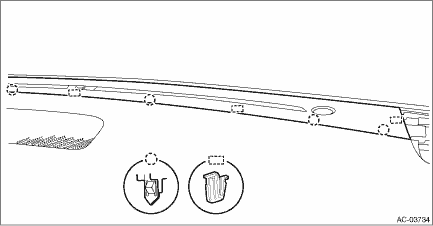

(1) Release the claws of the grille - front defroster.

CAUTION:

• Secure minimum space for performing the operation. Do not remove the grille - front defroster. If the grille - front defroster is removed, it cannot be reinstalled unless the instrument panel is removed.

• Be careful not to damage the sensor and interior trim.

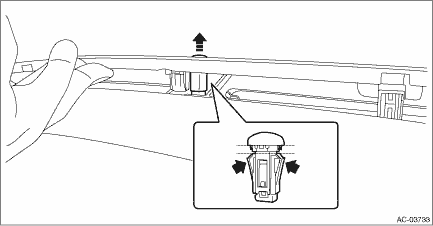

(2) Release the claws, and then pull out the sunload sensor from the grille - front defroster.

(3) Disconnect the connector and remove the sunload sensor.

Sunload sensor (auto a c model)

...

Inspection

1. Check if there is anything that affects sensing, around the sunload sensor.(1) Is the sunload sensor free from any object that disturbs sensing-(2) Is the windshield glass free from any object such ...
