Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Lighting system / Auto headlight beam leveler control module / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the cover assembly - instrument panel LWR driver. Instrument Panel Lower Cover > REMOVAL

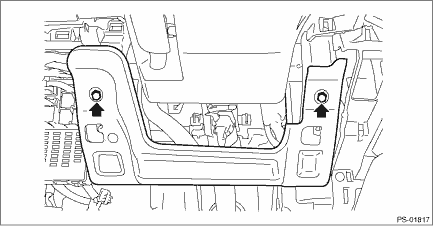

3. Remove the bolts, and then remove the panel - knee guard.

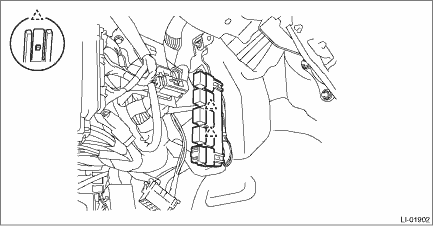

4. Release the lock and remove the relay holder.

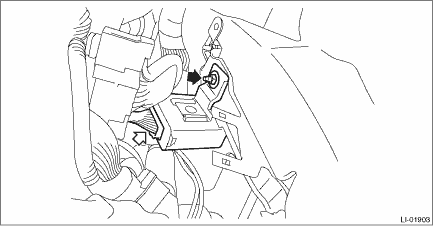

5. Remove the auto headlight beam leveler CM.

(1) Remove the nut.

(2) Disconnect the connector and remove the auto headlight beam leveler CM.

Auto headlight beam leveler control module

...

Installation

1. Install the auto headlight beam leveler CM.Tightening torque:7.5 N·m (0.8 kgf-m, 5.5 ft-lb)2. Install the relay holder.3. Install the panel - knee guard.Tightening torque:7 N·m (0.7 k ...
