Subaru Legacy BN/BS (2015-2019) Service Manual / Lighting system / Day time running resistor / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the bumper face - front. Front Bumper > REMOVAL

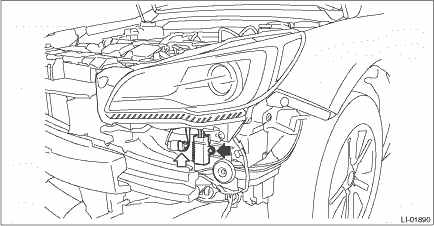

3. Remove the resistor assembly - daytime running light.

CAUTION:

The resistor may become hot. Be careful not to burn yourself when removing it.

(1) Disconnect the connector.

(2) Remove the bolts, then remove the resistor assembly - daytime running light.

Inspection

1. Measure the resistance between connector terminals.Preparation tool:Circuit testerTerminal No.Inspection conditionsStandard1 — 22 — 3Always1.82±0.07 -2. Replace the resistor assembly - daytime ...
