Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

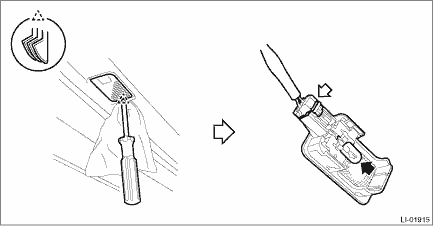

1. Disconnect the ground terminal from battery sensor. NOTE 2. Remove the light assembly - door step. CAUTION: • Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb. • When using a flat tip screwdriver, apply protective tape or cloth and be careful not to cause damage. (1) Insert a flat tip screwdriver into the slit of the light assembly - door step to release the claw. (2) Disconnect the connector and remove the light assembly - door step and the bulb.
|
Door step light
...
Installation
1. Install the bulb and light assembly - door step.CAUTION:Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.2. Connect the ground terminal to battery sensor. ...
