Subaru Legacy BN/BS (2015-2019) Service Manual / Lighting system / Rear height sensor / Removal

CAUTION:

Always remove the sensor assembly - headlight beam leveler before removing any parts related to the suspension.

1. Disconnect the ground terminal from battery sensor. NOTE

2. Lift up the vehicle.

3. Remove the rear wheel on the left side.

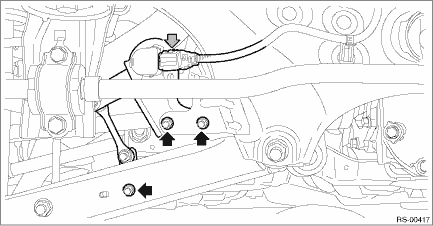

4. Remove the sensor assembly - headlight beam leveler.

CAUTION:

Do not disassemble the sensor and lever.

(1) Disconnect the connector.

(2) Remove the nuts, and remove the sensor assembly - headlight beam leveler.

Inspection

Preparation tool:Circuit tester1. Connect three dry cell batteries (1.5 V) in series.NOTE:• Use new dry-cell batteries.• Using circuit tester, check that the initial voltage of a single dr ...
