Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Lighting system / Spot map light / Removal

NOTE:

• The spot map light is a single unit with the overhead console or stereo camera cover. Replace the overhead console or stereo camera cover if faulty.

• Do not remove the spot map light if removing the bulb only.

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the overhead console. (Models without EyeSight)

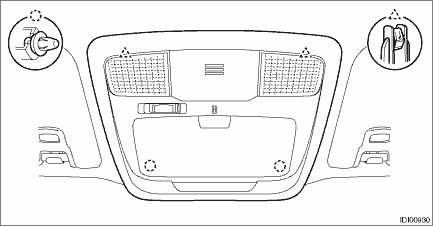

(1) Release the clips and claws.

(2) Disconnect the connector, and remove the overhead console.

3. Remove the stereo camera cover assembly. (Models with EyeSight) Stereo Camera > REMOVAL

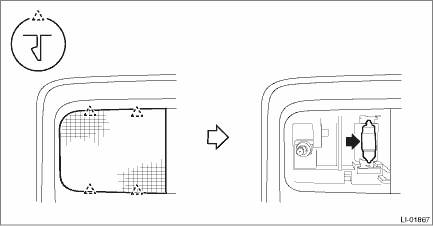

4. Release the claws, then detach the spot map light cover and bulb.

CAUTION:

• Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.

• When using a flat tip screwdriver, apply protective tape or cloth and be careful not to cause damage.
