Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

NOTE:

When replacing a single part, perform the work with the engine assembly installed to body.

1. When working on the vehicle

NOTE:

When working on the vehicle, perform the following steps also.

(1) Remove the radiator. Radiator > REMOVAL

(2) Remove the front exhaust pipe. Front Exhaust Pipe > REMOVAL

(3) Remove the engine mounting. Engine Mounting > REMOVAL

(4) Remove the bolts which secure the generator cord stay to the chain cover.

2. Drain the engine oil. Engine Oil > REPLACEMENT

3. Remove the V-belts. V-belt > REMOVAL

4. Remove the generator. Generator > REMOVAL

5. Remove the water pump pulley. Water Pump > REMOVAL

6. Remove the crank pulley. Crank Pulley > REMOVAL

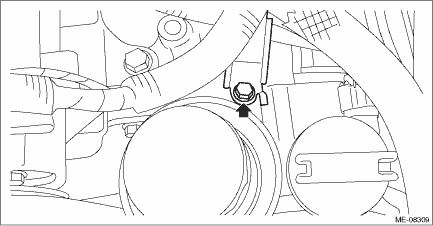

7. Remove the bolt securing the engine harness stay.

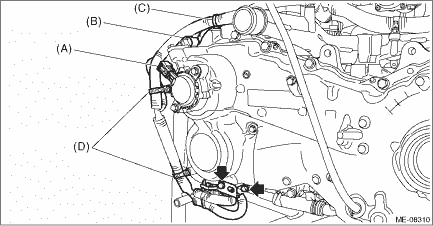

8. Disconnect the connector (A) and connector (B) to remove the clip (C) and clip (D) securing the engine harness.

9. Disconnect the connector (A) and remove the clip (B) securing the oil level switch harness.

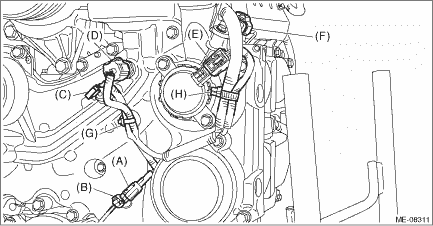

10. Disconnect the terminal (C), connector (D), connector (E) and connector (F), and remove the clip (G) and clip (H) securing the engine harness.

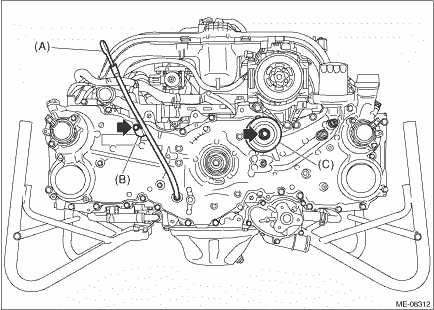

11. Pull out the oil level gauge (A), and remove the oil level gauge guide (B) and idler pulley (C).

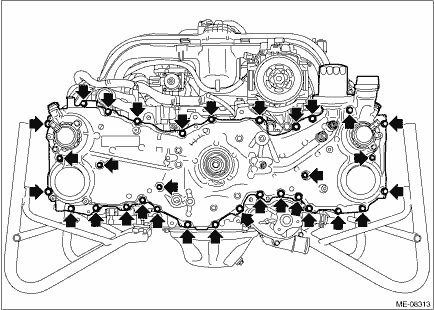

12. Remove the bolts securing the chain cover to the engine.

13. Expand the area shown in the figure using a crowbar or a similar tool wrapped in tape for protection, and remove the chain cover from the engine.

CAUTION:

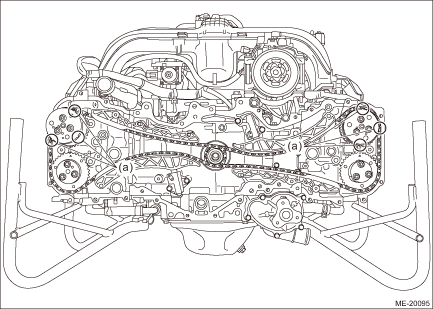

The chain cover may contact the protrusion (a) of cam sprocket sensor plate and cause damage. When removing the chain cover, move the chain cover horizontally until it cannot contact with the cam sprocket, and then remove it carefully.

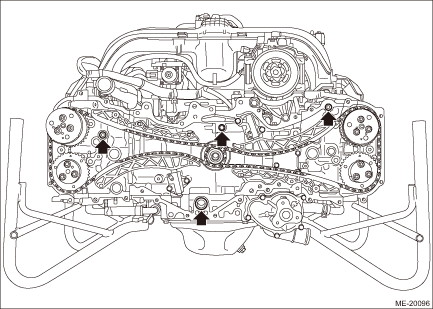

14. Remove the O-rings from cylinder head RH, cylinder head LH, cylinder block LH and oil pan upper.

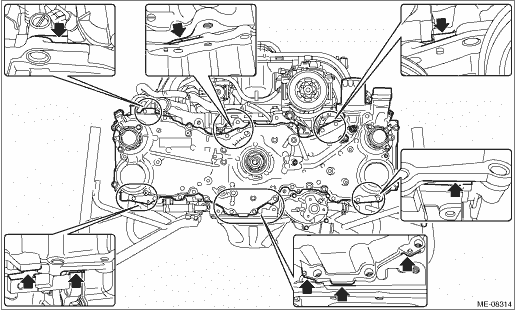

15. Remove the liquid gasket from the chain cover and engine unit.

Chain cover
...

Assembly
1. Install the camshaft position sensor. Camshaft Position Sensor > INSTALLATION2. Install the oil control solenoid. Oil Control Solenoid > INSTALLATION3. Install the engine oil temperature sensor. ...
