Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Mechanical(h6do) / Crank pulley / Removal

1. Remove the V-belts. V-belt > REMOVAL

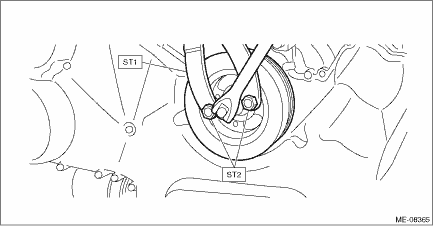

2. Use the ST to lock the crank pulley, and remove the crank pulley bolt.

ST1 18355AA000

PULLEY WRENCH

ST2 18334AA000

PULLEY WRENCH PIN SET

3. Remove the crank pulley.

Inspection

Check that the crank pulley has no deformation, cracks or other damages. ...
