Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Power assisted system (power steering) / Steering wheel / Removal

CAUTION:

Before handling the airbag system components, always refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Set the tire to the straight-ahead position.

3. Remove the driver’s airbag module. Driver’s Airbag Module > REMOVAL

4. Remove the steering wheel.

CAUTION:

• Always use the steering wheel puller for removal to avoid deforming the steering wheel.

• If the steering wheel has been removed, make sure that the steering roll connector is not turned from the original position.

Preparation tool:

Steering wheel puller

(1) Disconnect the connector and remove the nut.

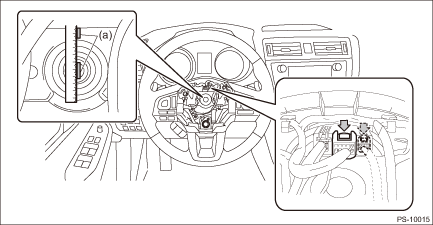

(2) Put an alignment mark (a) using a ruler as shown in the figure, and remove the steering wheel.
