Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

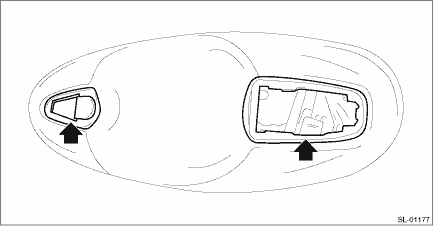

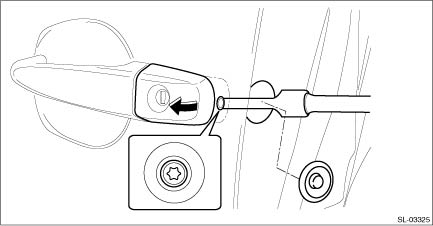

1. Raise the glass assembly - front door to the top position. 2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE 3. Remove the trim panel - front door. Door Trim > REMOVAL 4. Remove the sealing cover - front door. Front Sealing Cover > REMOVAL 5. Remove the cover - handle front outer. Preparation tool: TORX® T30 (1) Remove the plug at the rear end of the panel assembly - front door. (2) Loosen the TORX® bolt and remove the cover - handle front outer.

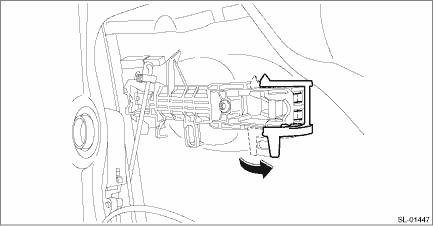

6. Remove the holder of the frame assembly - front door outer.

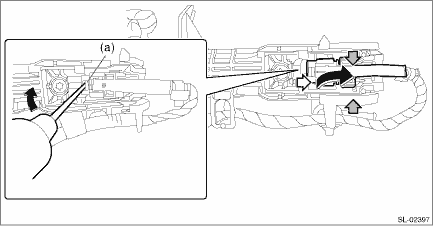

NOTE: • For model with keyless access with push button start, disconnect the harness clip and exterior antenna (touch sensor) connector. • Using (a) shown in the figure as a supporting point, pry it with a flat tip screwdriver to remove.

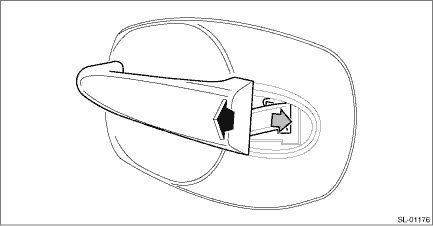

7. Remove the handle - door outer. CAUTION: Do not apply excessive force to remove the handle - door outer from the frame assembly - front door. (1) Pull the handle - door outer rearward to release engagement of the frame assembly - front door outer. (2) Pull the handle - door outer towards yourself to remove the handle - door outer.
8. Remove the frame assembly - front door outer. Preparation tool: TORX® T30 (1) Remove the spacer - door handle outer.

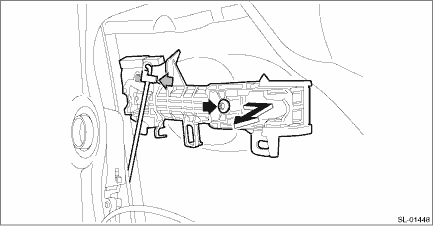

(2) Remove the rod clamp and remove the rod. (3) Loosen the TORX® bolt and remove the frame assembly - front door outer.
|
Inspection
Check if the outer handle operates normally.• If the lever is faulty, replace the handle - door outer.• If the rod is deformed, replace the door latch & actuator assembly - front. ...
