Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Security and locks / Rear door latch and door lock actuator assembly / Removal

1. Raise the glass assembly - rear door to the top position.

2. Disconnect the ground terminal from battery sensor. NOTE

3. Remove the trim panel - rear door. Door Trim > REMOVAL

4. Remove the sealing cover - rear door. Rear Sealing Cover > REMOVAL

5. Remove the glass assembly - rear door. Rear Door Glass > REMOVAL

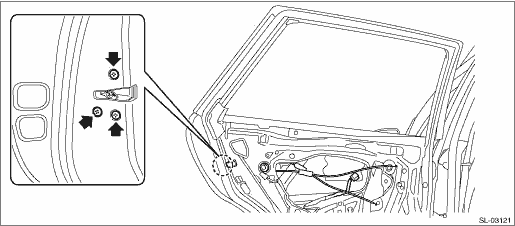

6. Remove the screws to remove the latch & actuator assembly - rear.
