Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

CAUTION:

Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION

Do not allow harness and connectors to interfere or get tangled up with other parts.

If the steering wheel and steering angle sensor (steering roll connector) are removed, perform “VSC(VDC) Centering Mode” of the VDC. VDC Control Module and Hydraulic Control Unit (VDCCM&H/U) > ADJUSTMENT

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the column assembly - steering. Steering Column > REMOVAL

3. Remove the steering lock CM.

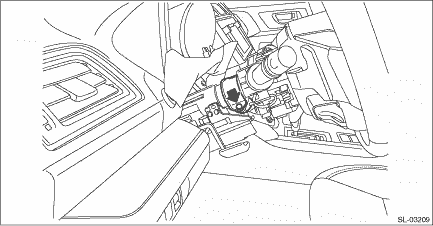

(1) Secure the column assembly - steering in a vise.

(2) Use the reverse tap or drill to remove the set bolt and remove the steering lock CM.

CAUTION:

Do not apply any impact to the set bolt by a chisel or punch. Doing so may damage the CM.

Steering lock cm
...

Inspection
1. Check if the steering lock is released when you start the engine using the push button ignition switch.2. If the system does not operate normally as the result of inspection, refer to “Genera ...
