Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Security and locks / Trunk opener button / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the garnish - trunk. Trunk Lid Garnish > REMOVAL

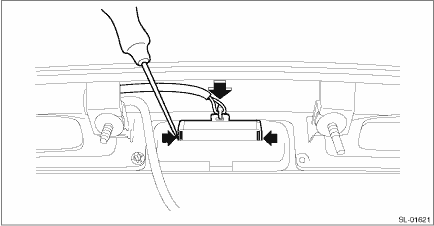

3. Release the locks at both ends of the trunk opener button by pushing them with a flat tip screwdriver.

Inspection

1. Using the Subaru Select Monitor, display «Rear gate/Trunk UNLOCK output» from «Data monitor».2. Check that the display changes when the trunk opener button is operated.3. If the display is not ...
