Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

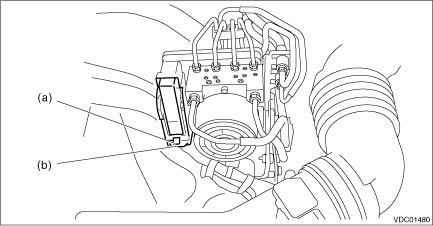

CAUTION: • Avoid unnecessary removal of parts in order to prevent fluid leakage. • When the VDCCM&H/U components are removed, be sure to perform the installation according to the installation procedures. VDC Control Module and Hydraulic Control Unit (VDCCM&H/U) > INSTALLATION 1. Disconnect the ground terminal from battery sensor. NOTE 2. Remove the air intake boot. NOTE 3. Remove the VDC control module & hydraulic control unit (VDCCM&H/U). CAUTION: • Do not pull on the harness when disconnecting the connector. • Wrap the brake pipe with a vinyl bag so as not to spill the brake fluid on the painted surface of the vehicle body. • If brake fluid is spilled on the painted surface of the vehicle body, wash it off immediately with water and wipe clean. (1) Remove any dirt from around the VDCCM&H/U. (2) Pull up the lock lever (b) while pressing the lock button (a) and disconnect the VDCCM&H/U connector.

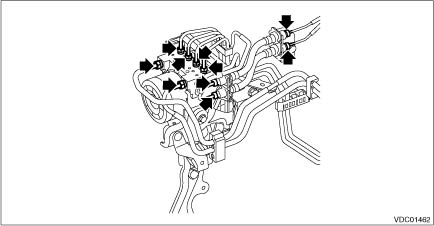

(3) Separate each brake pipe using a flare nut wrench. • Models with EyeSight

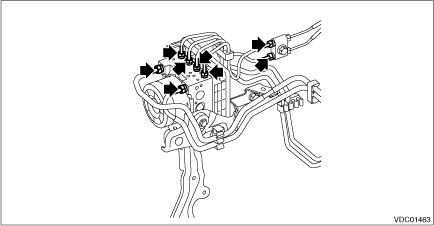

• Models without EyeSight

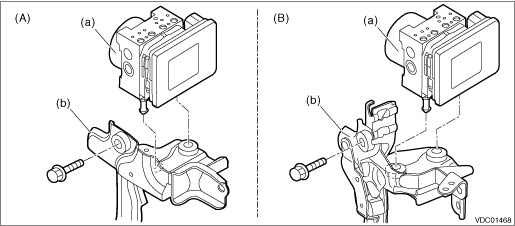

(4) Remove the bolts and nuts, and remove the bracket - hydraulic unit and the VDCCM&H/U.
|
Adjustment
1. VDC SENSOR MIDPOINT SETTING MODEAfter installing, replacing or adjusting the following parts, perform the VDC sensor midpoint setting mode.• Steering angle sensor• Steering wheel• ...
Installation
CAUTION:• When installing the VDCCM&H/U to the bracket - hydraulic unit, make sure that there is no oil adhered to the bolts and the threads of VDCCM&H/U. If the oil is adhered, degrease it care ...
