1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the V-belts. V-belt > REMOVAL

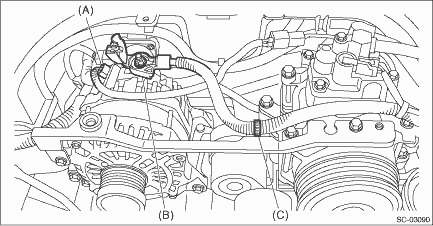

3. Disconnect the connector (A) and terminal (B) from the generator, and remove the clip (C).

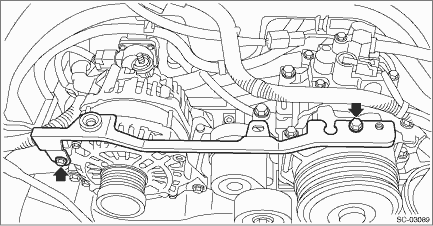

4. Remove the V-belt cover bracket.

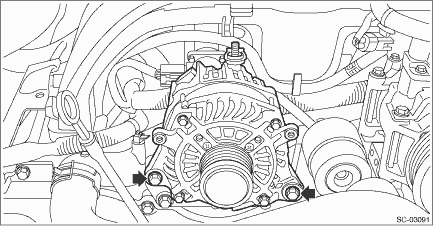

5. Remove the generator from the generator bracket.

6. Remove the V-belt tensioner. V-belt > REMOVAL

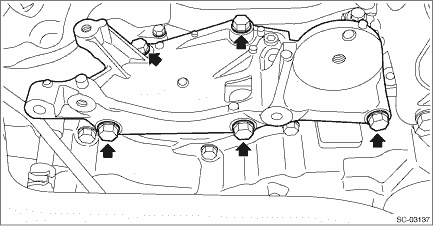

7. Remove the generator bracket from the engine.

NOTE:After assembling, manually turn the pulley to check that the rotor rotates smoothly.1. Use the following procedures to install the rectifier.(1) Remove old silicone grease on the mating surface o ...
