Subaru Legacy BN/BS (2015-2019) Service Manual: Removal
1. Remove the collector cover. (1) Carefully pull up the rear of collector cover at two positions (A). (2) Carefully pull up the front of collector cover at two positions (B) while moving it forward.

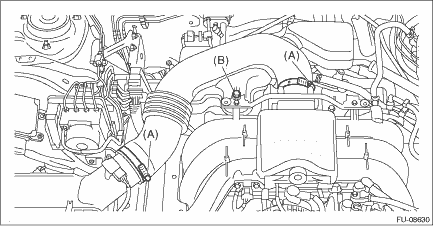

2. Disconnect the ground terminal from battery sensor. NOTE 3. Loosen the clamp (A) securing the air intake boot. 4. Loosen the bolt (B) securing the air intake boot to the collector cover bracket.

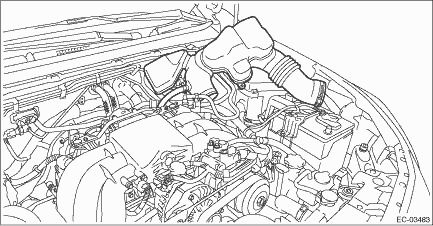

5. Remove the air intake boot from the throttle body and the air cleaner case (rear), and move it to the left side wheel apron.
6. Disconnect the connector (A) from the starter, and remove the terminal (B).

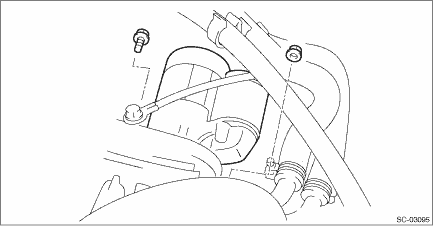

7. Remove the starter from transmission.
|
Starter
...
Assembly
1. Apply grease to the shaft sliding surfaces of the internal gear assembly.Grease:Multemp #6129 or equivalent2. Assemble the shaft to the internal gear assembly.3. Assemble the overrunning clutch as ...
