Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

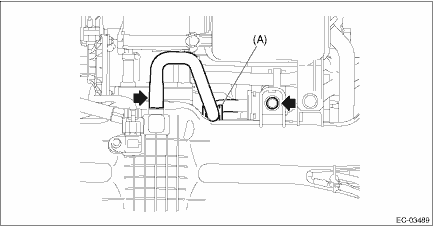

1. Disconnect the ground terminal from battery sensor. NOTE 2. Remove the bolt securing the purge control solenoid valve onto intake manifold assembly. NOTE: Hold the purge control solenoid valve unit by hand to prevent it from rotating together. 3. Disconnect the vacuum hose from the intake manifold assembly, and remove the vacuum hose from the clip (A).

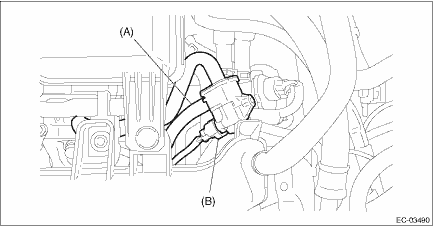

4. Disconnect the vacuum hose (A) and connector (B) from the purge control solenoid valve, and remove the purge control solenoid valve.

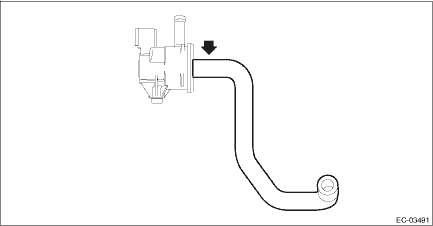

5. Remove the vacuum hose from the purge control solenoid valve.
|
Inspection
1. PURGE CONTROL SOLENOID VALVE1. Check that the purge control solenoid valve has no deformation, cracks or other damages.2. Measure the resistance between the purge control solenoid valve terminals.T ...
