1. FRONT

NOTE:

Since the arm assembly - windshield wiper LH and RH can interfere with each other, remove the driver’s side first.

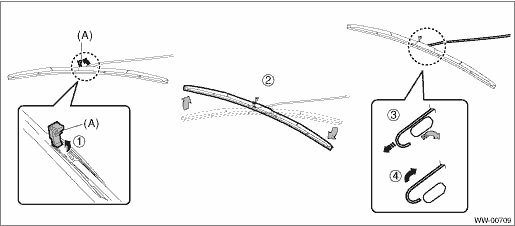

1. Lift up the locking clip (A).

2. Turn the blade assembly - windshield wiper in the arrow direction.

3. Push in the arm assembly - windshield wiper.

4. Pull out the arm assembly - windshield wiper while pulling it up, and remove the blade assembly - windshield wiper from the arm assembly - windshield wiper.

2. REAR

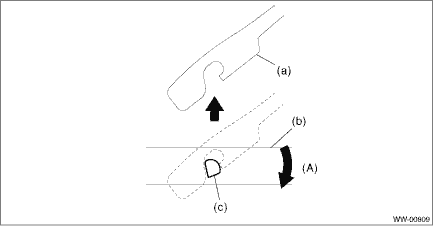

Turn the blade assembly - rear wiper in the direction of arrow (A) and remove it from the arm assembly - rear wiper.

(A)	Rotate the blade ASSY - rear wiper.

(a)	Arm ASSY - rear wiper	(b)	Blade ASSY - rear wiper	(c)	Blade ASSY - rear wiper installation portion

1. FRONT1. Insert the rubber assembly - windshield wiper onto the blade - windshield wiper so that the stopper is in the position shown in the figure.2. Make sure the rubber assembly - windshield wipe ...
