Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

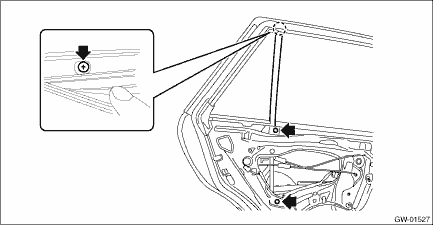

1. Disconnect the ground terminal from battery sensor. NOTE 2. Remove the trim panel - rear door. Door Trim > REMOVAL 3. Remove the sealing cover - rear door. Rear Sealing Cover > REMOVAL 4. Connect the ground terminal to battery sensor. NOTE 5. Remove the glass assembly - rear door. (1) Install the switch - power window and then turn the ignition switch to ON. (2) Operate the switch - power window sub rear to move the glass assembly - rear door to the lowest position. (3) Remove the running channel - rear door. (4) Remove the screws and bolts, and then remove the sash assembly - rear partition.

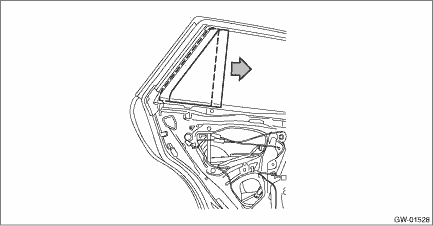

(5) Remove the glass - rear door partition.

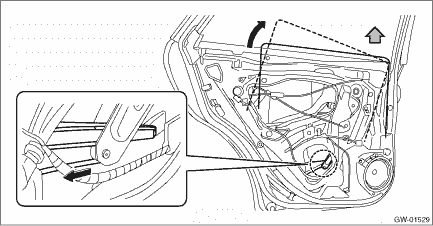

(6) While tilting the glass assembly - rear door, remove the guide from the roller of the regulator and motor assembly - rear, then remove the glass assembly - rear door. CAUTION: Avoid impact and damage to the glass assembly - rear door.
|
Rear door glass
...
Installation
1. Install the running channel - rear door to the panel assembly - rear door.CAUTION:Check that the running channel - rear door is securely fixed to the panel assembly - rear door and to the sash asse ...
