Subaru Legacy BN/BS (2015-2019) Service Manual / Glass windows mirrors / Rear regulator and motor assembly / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel - rear door. Door Trim > REMOVAL

3. Remove the sealing cover - rear door.

4. Remove the glass assembly - rear door. Rear Door Glass > REMOVAL

5. Remove the rear regulator and motor assembly.

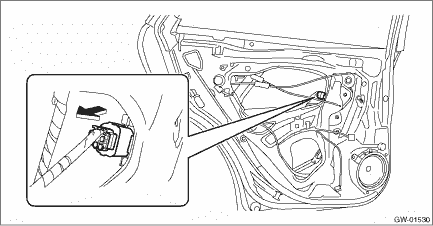

(1) Disconnect the connector of the motor - rear.

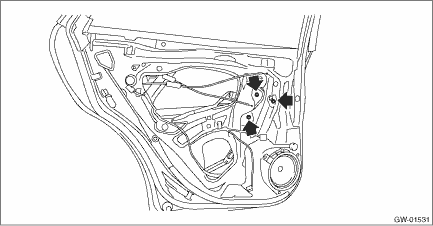

(2) Remove the bolts, and then remove the regulator and motor assembly - rear.

Rear regulator and motor assembly

...

Inspection

1. Check the motor operation when battery voltage is applied between the connector terminals.• LH sideTerminal No.Inspection conditionsStandard4 (+) — 1(−)Apply battery voltage between t ...
