Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Glass windows mirrors / Remote control mirror switch / Removal

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the trim panel - front door. Door Trim > REMOVAL

3. Remove the panel - power window main switch. Power Window Control Switch > REMOVAL

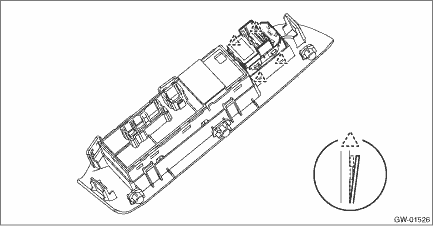

4. Release the claws, and then remove the switch - door mirror from the panel - power window main switch.

Inspection

1. Check the resistance between connector terminals.Preparation tool:Circuit tester• Changeover switch RHTerminal No.Inspection conditionsStandard — OFF1 M- or more1 — 129 — 7UPLess than 1 ...
