Subaru Legacy BN/BS (2015-2019) Service Manual: Removal
CAUTION: • For model with EyeSight, always remove the glass - front window after the stereo camera is removed. • For model with EyeSight, always use Subaru genuine windshield glass specially designed for EyeSight. (If the windshield glass other than the glass specially designed for EyeSight is used, the visibility of the camera is blocked or the distortion of the glass prevents the correct measurement of the object, resulting in the EyeSight abnormal operation.) • For model with EyeSight, if the windshield glass is installed after removal or replaced, always perform the “Inspection” and “Adjustment and check” of the stereo camera. Inspection: General Description > INSPECTION Adjustment and check: Camera Adjustment, Inspection • For model with EyeSight, if the damage is found in the glass repair prohibited area, always replace the glass. Damage in the prohibited area can affect the recognition of the stereo camera even if it is repaired, and thereby EyeSight function may not operate properly. 1. WHEN USING WINDSHIELD GLASS KNIFE 1. Disconnect the ground terminal from battery sensor. (Models with wiper deicer) NOTE 2. Remove the trim panel - front pillar UPR. Upper Inner Trim > REMOVAL 3. Remove the cowl panel assembly. Cowl Panel > REMOVAL 4. Remove the stereo camera cover and stereo camera. (Models with EyeSight) Stereo Camera > REMOVAL 5. Disconnect the wiper deicer connector. (Models with wiper deicer) 6. Remove the molding - front window from the glass - front window, and attach protective tape on the body side of the circumference of the glass - front window.

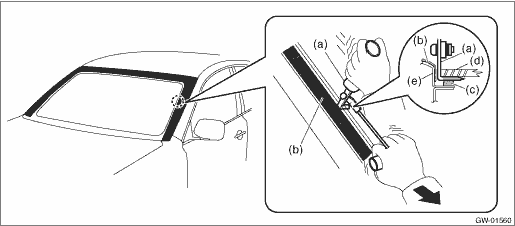

7. Remove the glass - front window. (1) Apply sufficient amount of soapy water to the adhesive part and insert the windshield glass knife. (2) While holding the edges of the knife and the glass - front window at a right angle, move the windshield glass knife parallel to the edge of the glass - front window, and cut the adhesive along the surface and the edge of the glass - front window. CAUTION: • Cutting of adhesive part should be started from an area with wider gap between the glass - front window and the body. • Never twist the windshield glass knife.
(3) Disconnect the locating pin - front window, and remove the glass - front window. NOTE: The locating pin - front window are bonded to the corners of the glass - front window. Use piano wire to disconnect the pins.

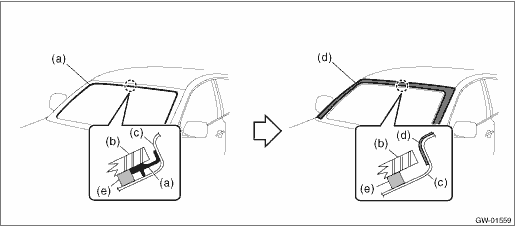

2. WHEN USING PIANO WIRE CAUTION: • Do not tightly pull the piano wire against the glass - front window edge. • Apply protective tape, etc, and be careful that the inner and outer components of the vehicle are not damaged. • Do not cross piano wires. Otherwise they may be cut. 1. Disconnect the ground terminal from battery sensor. (Models with wiper deicer) NOTE 2. Remove the trim panel - front pillar UPR. Upper Inner Trim > REMOVAL 3. Remove the cowl panel assembly. Cowl Panel > REMOVAL 4. Disconnect the wiper deicer connector. (Models with wiper deicer) 5. Remove the stereo camera cover and stereo camera. (Models with EyeSight) Stereo Camera > REMOVAL 6. Remove the molding - front window from the glass - front window, and attach protective tape on the body side of the circumference of the glass - front window.

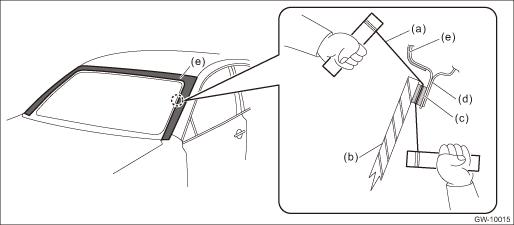

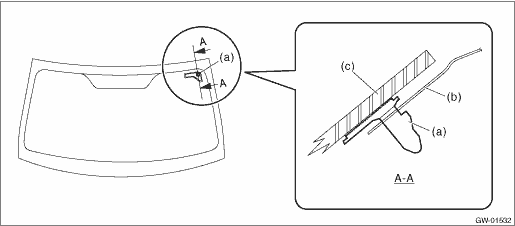

7. Remove the glass - front window. (1) Using a drill, make a hole in the adhesive part. (2) Pass the piano wire through the hole, and pull the wire ends alternately to cut off the adhesive part and the locating pin - front window. CAUTION: Attach a piece of wood to both piano wire ends.
|
