Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

CAUTION:

Refer to “CAUTION” of “General Description” before handling the airbag system components. General Description > CAUTION

If the hook - rear seat is disconnected from the vehicle body, make sure to replace the hook - rear seat with a new part to prevent the decline of the fixed force of the seat.

1. Turn the ignition switch to OFF.

2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

3. Remove the rear seat cushion assembly and the side pad assembly - backrest (on the side where curtain airbag sensor is removed). Rear Seat > REMOVAL

Sedan model: Rear Seat > REMOVAL

OUTBACK model: Rear Seat > REMOVAL

4. Remove the cover side sill - rear. (On the side where the curtain airbag sensor is removed) Lower Inner Trim > REMOVAL

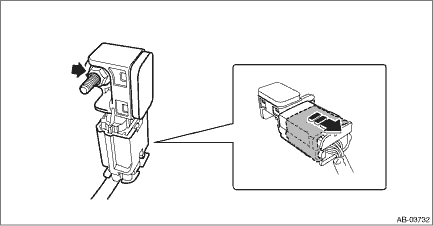

5. Remove the nuts and then remove the curtain airbag sensor. Airbag Connector > PROCEDURE

Curtain airbag sensor
...
